Cynergy3 IWR-5 Wireless Receiver - 5 channel
The IWR-5 five channel wireless receiver from Cynergy3 is a designed to be paired with IWPT, IWPTU, IWTT and IWTTU series of wireless pressure and temperature sensors. With end-to-end accuracy of 0.25% FS BFSL and up to 750m line-of-sight range (with use of optional 3dBl antenna), the wireless system offers an economical alternative to traditional wired transducer solutions. The IWR-5 offers user-selectable features (choice of output, transmission rate etc.) and requires minimal setup using the software provided, ensuring a simple solution to multi-channel remote measurement applications.
- Wireless receiver for IWPT/U and IWTT/U series of wireless pressure and temperature transducers
- 5 channel
- Simple installation using the IWR-Set software (download link available in Technical Library)
- User selectable output: 4-20mA or 1-5V
- Accuracy <±0.25% of the full scale (BFSL)
- Operating temperature range (media temperature) of -10°C to +50°C
- Clean contact output for process, low battery or loss of signal alarm function
- Up to 750m line-of-sight range when used with 3dBl antenna (up to 500m with standard 0dBl antenna)
- Powered by 12-32Vdc supply
A range of auxilliary parts is available for the IWR-5 receiver, including DIN rail and wall mounting kits, upgraded 3dBl antenna, etc. - please speak to our technical sales team to discuss your requirements.

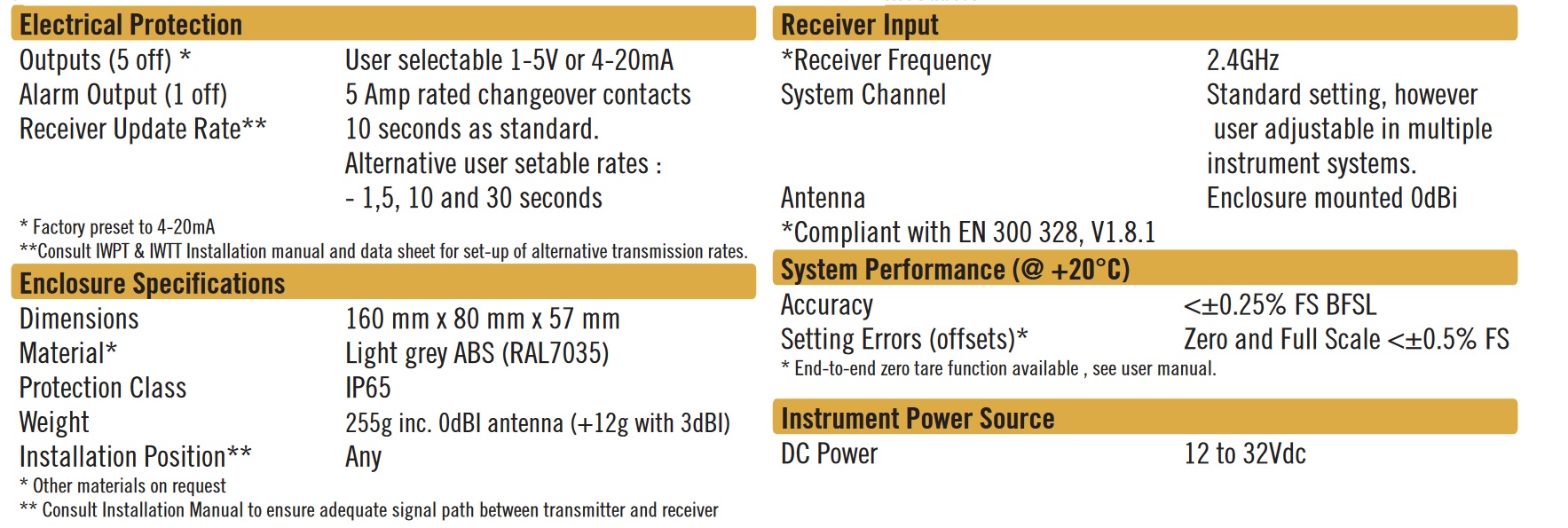

The below table gives the full specifications for the Cynergy3 IWR-5 wireless receiver:
| Specifications | |
| Accuracy | <±0.25% FS BFSL |
| Additional Features |
|
| Number of channels | 5 channel |
| Operating Temperature | -10°C to +50°C |
| Output |
|
| Supply Voltage | 12 to 32Vdc |
We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:
| SOFTWARE | |
|---|---|
 |
Configuration software IWR-SET for Cynergy3 IWR series of wireless receivers |
We are pleased to provide you with a range of videos, please see below for the latest content available:
| VIDEOS | |
|---|---|
 |
Cynergy3 Wireless Pressure & Temperature Sensors Video Overview of the features and benefits of Cynergy3 wireless temperature and pressure sensor technology. |
| VIDEOS | |
|---|---|
|
|
| Cynergy3 Wireless Pressure & Temperature Sensors Video Overview of the features and benefits of Cynergy3 wireless temperature and pressure sensor technology. |
|
This product is available fully compliant to the RoHS EU directive 2011/65/EU.
