The RedRock™ RR110-A111-00 is an analog TMR magnetic sensor from Coto. It features a resistance at 0G of 65000 Ω (typically) with an unipolar magnetic field response all with a supply voltage of 15Vdd (max), an operating current 1µA (typically), as well as an operating temperature from −40°C up to +85°C. The RedRock™ RR110 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration. It can function even in low magnetic fields with large air gaps and provides high sensitivity with low power consumption in a small footprint package.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR110 series offers multiple configurations or several parameters to enable applications like:
The below table gives the full specifications of the Coto RR110 magnetic sensor series:
1. Contact us for more information on additional product offerings.
£0.00 Ex Tax: £0.00
The RedRock™ RR111 series is a TMR analog magnetic sensor from Coto. It features zero hysteresis with an omnipolar magnetic field response all with a low average current drain of 1.6mA for a continuously active magnetic sensor, supply voltage of 3.6Vdd, as well as an operating temperature from −40°C up to +85°C. The RedRock™ RR111 series is available in a SOT-23-3 or LGA-4 package sizes, it is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, it enables applications like proximity sensing and continuous level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR111 series enables applications like:
The below table gives the full specifications of the Coto RR111 magnetic sensor series:
1. All characteristics as measured at 25°C
£0.00 Ex Tax: £0.00
The RedRock™ RR121-1A23-311 is a magnetic sensor with digital logic output from Coto. It features available operate sensitivity of 30G with an omnipolar magnetic field response all with a supply voltage of 3Vdd(typical), an average supply current drain of 0.24µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
The below table gives the full specifications of the Coto RR121-1A23-311 magnetic sensor:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +125°C. Typical values are Vdd = 3V and TA = +25°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-1A53-311 is a magnetic sensor with digital logic output from Coto. It features available operate sensitivity of 9G with an omnipolar magnetic field response all with a supply voltage of 3Vdd(typical), an average supply current drain of 1.44µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
The below table gives the full specifications of the Coto RR121-1A53-311 magnetic sensor:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +125°C. Typical values are Vdd = 3V and TA = +25°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-1B13-311 is a magnetic sensor with digital logic output from Coto. It features an operating sensitivity of 30G with an omnipolar magnetic field response all with a supply voltage of 3Vdd (typical), an average supply current drain of 0.2µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121series offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +125°C. Typical values are Vdd = 3V and TA = +25°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-1B13-312 is a magnetic sensor with digital logic output from Coto. It features an operating sensitivity of 30G with an omnipolar magnetic field response all with a supply voltage of 3Vdd (typical), an average supply current drain of 0.2µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +25°C. Typical values are Vdd = 3V and TA = +125°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-1B53-311 is a magnetic sensor with digital logic output from Coto. It features an operating sensitivity of 30G with an omnipolar magnetic field response all with a supply voltage of 3Vdd (typical), an average supply current drain of 1.44µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +25°C. Typical values are Vdd = 3V and TA = +125°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-1B93-312 is a magnetic sensor with digital logic output from Coto. It features an operating sensitivity of 30G with an omnipolar magnetic field response all with a supply voltage of 3Vdd (typical), an average supply current drain of 36µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +125°C. Typical values are Vdd = 3V and TA = +25°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-1E73-311 is a magnetic sensor with digital logic output from Coto. It features an operating sensitivity of 15G with an omnipolar magnetic field response all with a supply voltage of 3Vdd (typical), an average supply current drain of 8µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +125°C. Typical values are Vdd = 3V and TA = +25°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-1F23-311 is a magnetic sensor with digital logic output from Coto. It features an operating sensitivity of 70G with an omnipolar magnetic field response all with a supply voltage of 3Vdd (typical), an average supply current drain of 0.24µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +125°C. Typical values are Vdd = 3V and TA = +25°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-2A32-364 is a magnetic sensor with digital logic output from Coto. It features available operate sensitivity of 9G with an unipolar magnetic field response all with a supply voltage of 3Vdd (typical), an average supply current drain of 0.28µA, as well as a high operating temperature from −40°C up to +85°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
The below table gives the full specifications of the Coto RR121-2A32-364 magnetic sensor:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +125°C. Typical values are Vdd = 3V and TA = +25°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-3C63-311 is a magnetic sensor with digital logic output from Coto. It features an operating sensitivity of -10G with a bipolar magnetic field response all with a supply voltage of 3Vdd (typical), an average supply current drain of 1.44µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
The below table gives the full specifications of the Coto RR121-3C63-311 magnetic sensor:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +25°C. Typical values are Vdd = 3V and TA = +125°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR121-3C73-311 is a magnetic sensor with digital logic output from Coto. It features an operating sensitivity of -10G with an bipolar magnetic field response all with a supply voltage of 3Vdd (typical), an average supply current drain of 8µA, as well as a high operating temperature from −40°C up to +125°C. The RedRock™ RR121 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 offers multiple configurations of several parameters to enable applications like proximity sensing, rotary sensing and level detection.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR121 series offers multiple configurations or several parameters to enable applications like:
The below table gives the full specifications of the Coto RR121-3C73-311 magnetic sensor:
1. Unless otherwise specified, Vdd =2.7V to 3.6V, TA = −40°C to +25°C. Typical values are Vdd = 3V and TA = +125°C.
£0.00 Ex Tax: £0.00
The RedRock™ RR131-1B13-351 is a digital magnetic switch from Coto. It features an operating sensitivity of 30G (typically) with an omnipolar magnetic field response all with a supply voltage of 3Vdd (typically), an average supply current drain of 0.2µA (typically), as well as an operating temperature from −40°C up to +125°C. The RedRock™ RR131 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration, it can function even in low magnetic fields with large air gaps and provides high sensitivity with low power consumption in a small footprint package.
Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR131 series offers multiple configurations or several parameters to enable applications like:
For the full specifications of the Coto RR131-1B13-351 please see the datasheet on the Technical Library tab.
£0.00 Ex Tax: £0.00
The NVE AAT001-10E angle sensors use unique tunnelling magnetoresistance (TMR) elements for large signals and low power consumption. The sensor provides sine and cosine signals defining the angle of rotation, the outputs are proportional to the supply voltage of 5.5V (max) and peak-to-peak output voltages of 0.2V/V over a full rotation which are much larger than conventional sensor technologies. The AAT001-10E sensors from NVE consist of two half-bridges with a typical bridge resistance of 1.25MΩ for ultra low power applications in an ultraminiature TDFN6 package.
The AAT001-10E sensor contains four sensing resistors at 90° intervals and are connected as two half-bridges providing the sine and cosine voltage outputs. For each half bridge the resistance of one element increases and the other decreases as the field rotates, thus the bridge resistance, device resistance and output impedances remain constant with rotation.
Typical applications for the ATT001 series include:

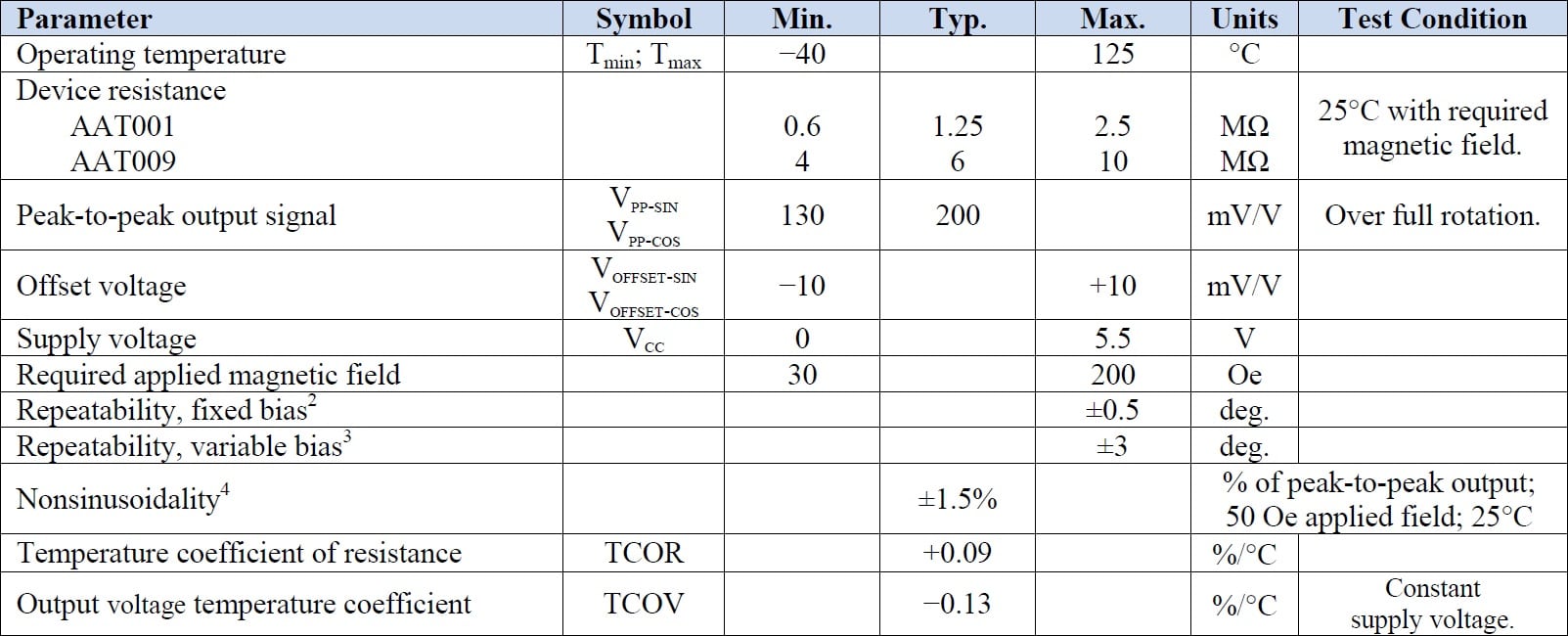

The below table gives the full specifications of the NVE AAT angle sensor series including the AAT001-10E:
1. Large magnetic fields CANNOT damage NVE sensors.
2. "Fixed Bias” means a fixed airgap between the bias magnet and sensor so the magnetic field at the sensor is constant.
3. “Variable Bias” means the magnetic field strength at the sensor can vary across the specification range.
4. Maximum deviation of either output from an ideal sine wave.
