The FS15 series of normally open flow switches by Cynergy3 utilises a fixed reed switch with a low flow restriction and a moving magnet to enable accurate flow detection, while ensuring minimal fluid flow restriction. These inline switches are designed for operation in liquid flow systems with pressure of up to 10 bar (not suitable for systems containing significant amount of solid particles) and come in 15mm tube size with a low-flow version available. The FS15 series flow switches can be operated in temperatures of up to 85°C and are WRAS approved for use in cold and hot water up to 60°C.
Customisation is available on this product - speak to our technical sales team to discuss your requirement.
The below table gives the full specifications for each resistor model available including the Cynergy3 FS15 series:
£0.00 Ex Tax: £0.00
The FS22 series of normally open flow switches by Cynergy3 utilises a fixed reed switch with a low flow restriction and a moving magnet to enable accurate flow detection, while ensuring minimal fluid flow restriction. These inline switches are designed for operation in liquid flow systems with pressure of up to 10 bar (not suitable for systems containing significant amount of solid particles) and come in 22mm tube size with a low-flow version available. The FS15 series flow switches can be operated in temperatures of up to 85°C and are WRAS approved for use in cold and hot water up to 60°C.
Customisation is available on this product - speak to our technical sales team to discuss your requirement.
The below table gives the full specifications for each resistor model available including the Cynergy3 FS22 series:
£0.00 Ex Tax: £0.00
The F31 flameproof flange mount vertical switches from Cynergy3 are part of their TAV brand of fully customisable fluid handling components specialising in provision for harsh and hazardous environments. These switches are top mounted via flanged connection, from the outside of the tank, and offer 1, 2, 3 or 4 point level SPST or SPDT switch configurations. All F31 float switches are custom designed to a particular application, based on the SG of the fluid, maximum temperature and pressure required, flange size, distance between the mounting face to the switching point, switching action and other requirements. They are PED and ATEX certified (Ex II 1 / 2 G D, Ex d IIC T4 and Ex tD A20/A21 T110°C IP6X) for use in Zone 1 and 2 hazardous areas
Typical applications for the Cynergy3 TAV F31 series of float switches include:
This product is offered custom-designed as standard - please speak to our technical sales team to discuss your requirement.

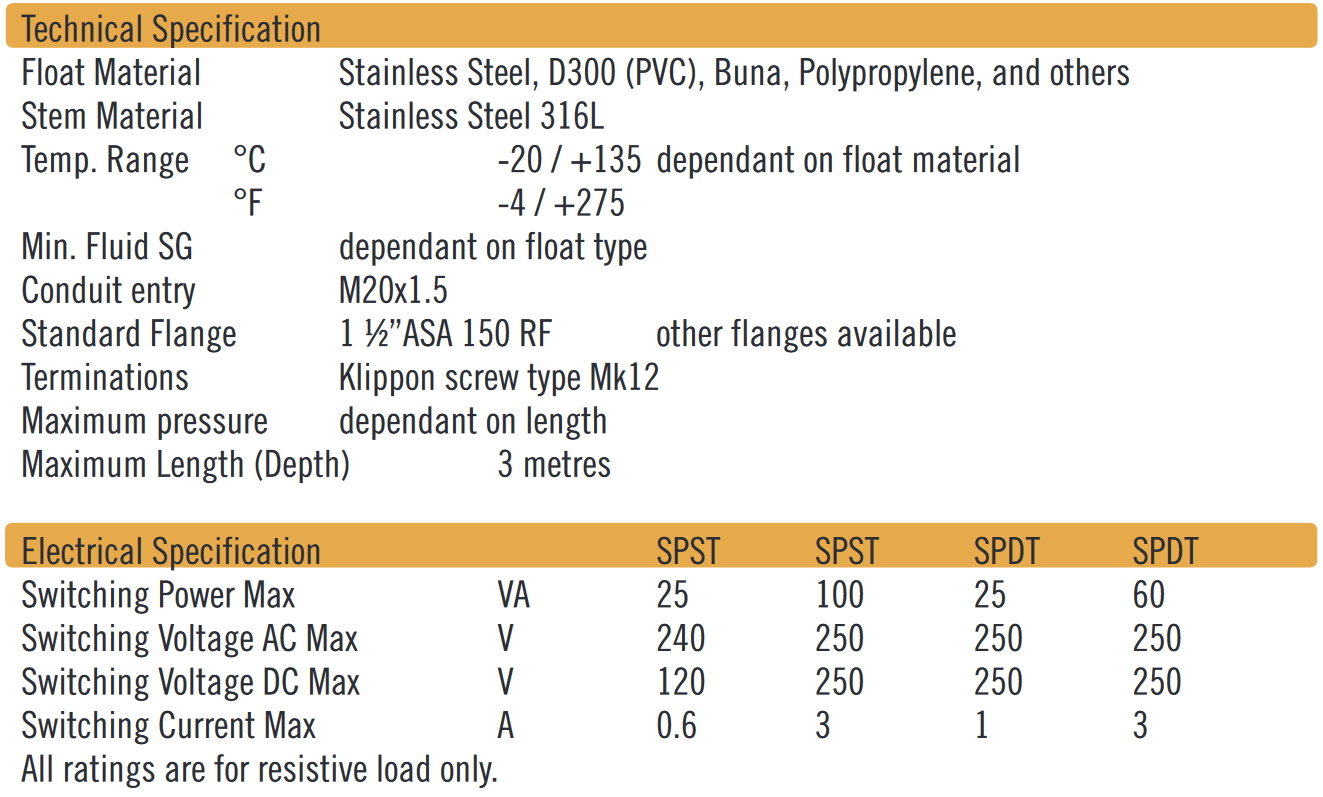

The below table gives the full specifications for the Cynergy3 TAV F31 float switches:
£0.00 Ex Tax: £0.00
