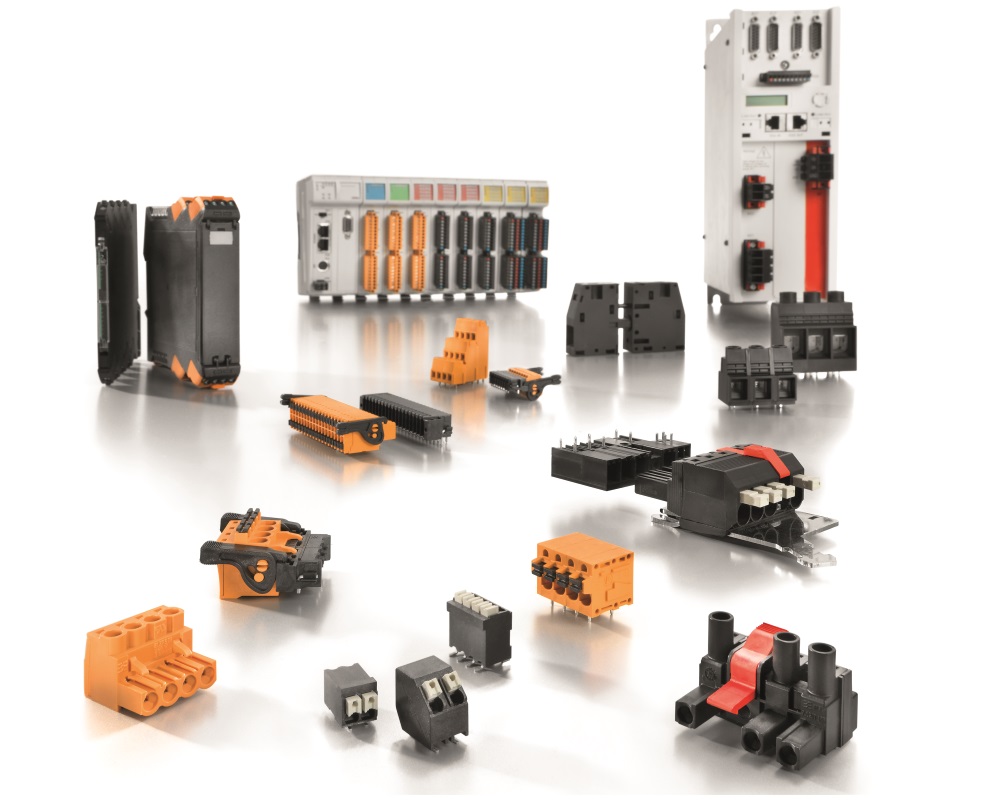

Rhopoint Components are a UK franchised design-in distributor for the Weidmüller Omnimate Power range including PCB terminal Blocks, plug-in connectors and panel feed through terminal blocks for industrial applications with a focus on power electronics. Power for high current up to 232A and voltage up to 1000V (IEC) or 230A at 600V (UL). The components are optimised for application-oriented design, efficient production and reliable application.
Please click here to see the full range of the Weidmüller Omnimate products.
PCB plug-in connectors for power electronics, optimised for modern drive technologies, eg: motor starters, frequency converters and servo-controllers
Feedthrough terminals for devices are a universal solution to feed power through housing walls. Excellent for applications such as EMC filters, discrete-built inverters for drive systems and encapsulated devices.
The BUZ 10.16HP/180 high power, female PCB plug in connector series from Weidmüller's Omnimate power range has been designed with a conductor outlet direction of 180°. With a 10.16mm pitch and a choice from 2 up to 9 poles. The BUZ 10.16HP/180 series from Weidmüller have a clamping yoke screw connection with a high current rating of 78.3A (IEC) and 60A (UL approved). These connectors have an operating temperature range of −50°C up to +130°C .
The below table gives the specifications of the Weidmüller BUZ 10.16HP/180 PCB connector series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The BVF 7.62HP/180 high power, female PCB plug in connector series from Weidmüller's Omnimate power range has been designed with a conductor outlet direction of 180°. With a 7.62mm pitch and a choice from 2 up to 7 poles. The BVF 7.62HP/180 series from Weidmüller have a push in plug in connection with a high current rating of 57A (IEC) and 39A (UL approved). These connectors have an operating temperature range of −50°C up to +125°C .
The below table gives the specifications of the Weidmüller BVF 7.62HP/180 PCB connector series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LLF 7.50/90V PCB terminal series from Weidmüller's Omnimate power range, offers a spring connection with direct push in technology and actuator. Designed with a conductor outlet direction of 90° and a choice from 2 up to 12 poles and a 7.5mm pitch. The LLF 7.50/90V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .
Typical applications for the LLF 7.50/90V series include:
The below table gives the specifications of the Weidmüller LLF 7.50/90V PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LLFS 7.50/180V PCB terminal series from Weidmüller's Omnimate power range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180° and a choice from 2 up to 12 poles and a 7.5mm pitch. The LLFS 7.50/180V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .
The Sturdy, direct connection for extreme current and voltage requirements in all power electronics applications for the LLFS 7.50/180V series include:
The below table gives the specifications of the Weidmüller LLFS 7.50/180V PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LU 10.16/90 PCB terminal series from Weidmüller's Omnimate power range, offers a clamping yoke screw connection. Designed with a conductor outlet direction of 90° and a choice from 2 up to 10 poles and a 10.16mm pitch. The LU 10.16/90 series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

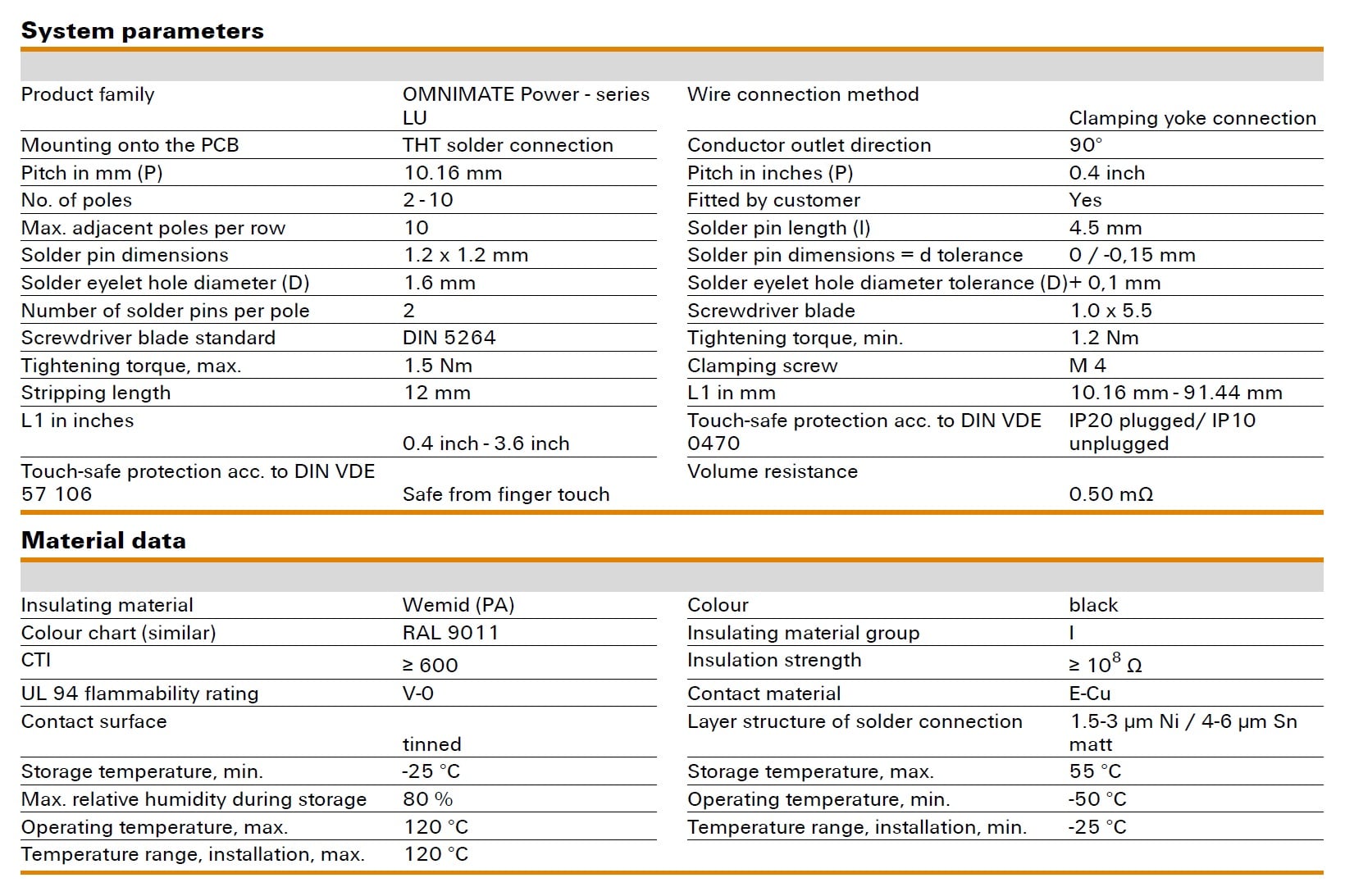

The below table gives the specifications of the Weidmüller LU 10.16/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LUF 10.00/90V PCB terminal series from Weidmüller's Omnimate power range, offers a spring connection with direct push in technology and actuator. Designed with a conductor outlet direction of 90° and a choice from 2 up to 12 poles and a 10mm pitch. The LLF 10.00/90V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .

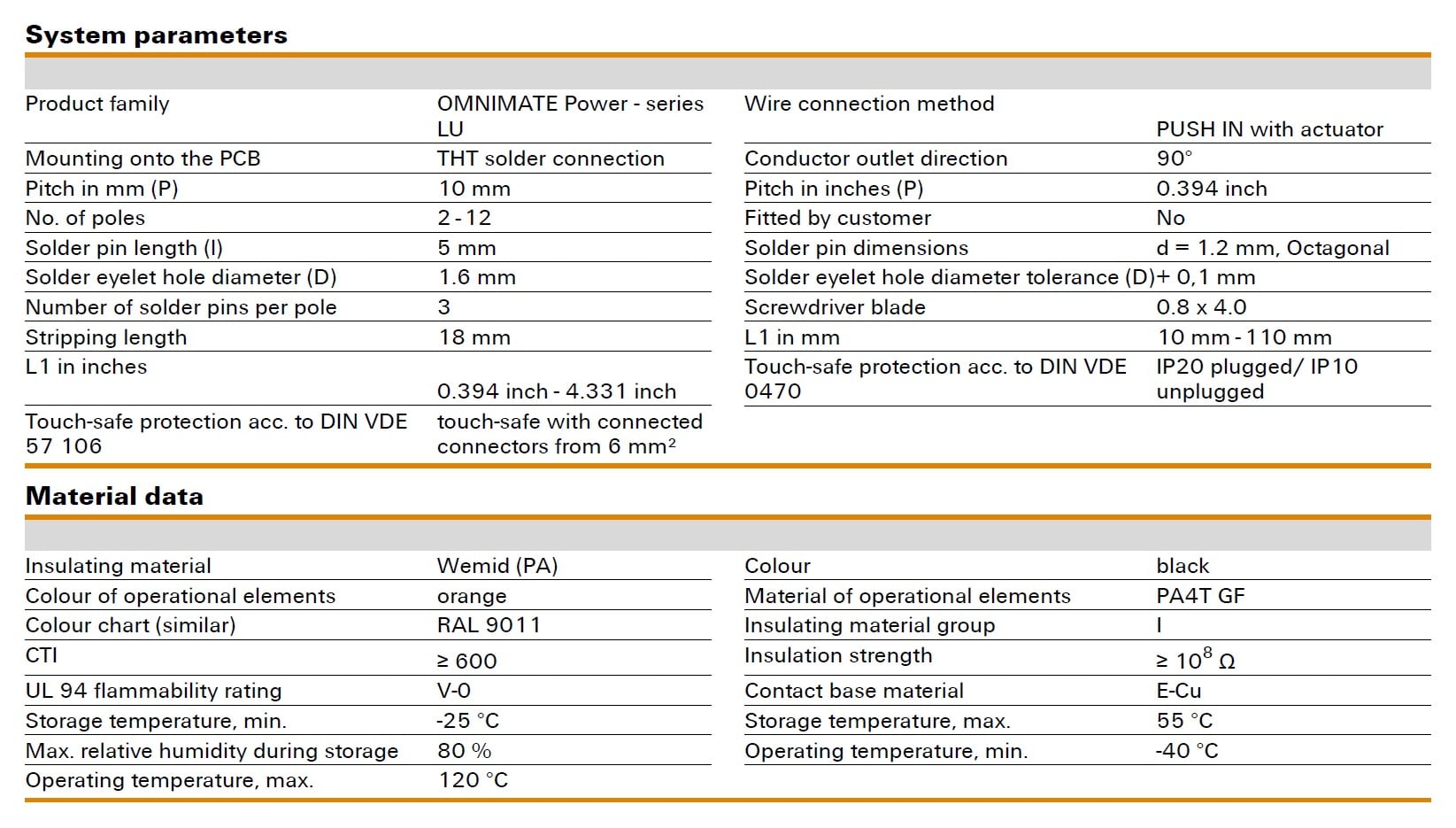

The below table gives the specifications of the Weidmüller LUF 10.00/90V PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LUF 15.00/90V PCB terminal series from Weidmüller's Omnimate power range, offers a spring connection with direct push in technology and actuator. Designed with a conductor outlet direction of 90° and a choice from 2 up to 8 poles and a 15mm pitch. The LUF 15.00/90V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .
The Study, direct connections for extreme current and voltage requirements in all power applications for the LLFS 15.00/90V series include:
The below table gives the specifications of the Weidmüller LUF 10.00/90V PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LUFS 10.00/180V PCB terminal series from Weidmüller's Omnimate power range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180° and a choice from 2 up to 12 poles and a 10mm pitch. The LUFS 10.00/180V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .
The Sturdy, direct connection for extreme current and voltage requirements in all power electronics applications for the LUFS 10.00/180V series include:

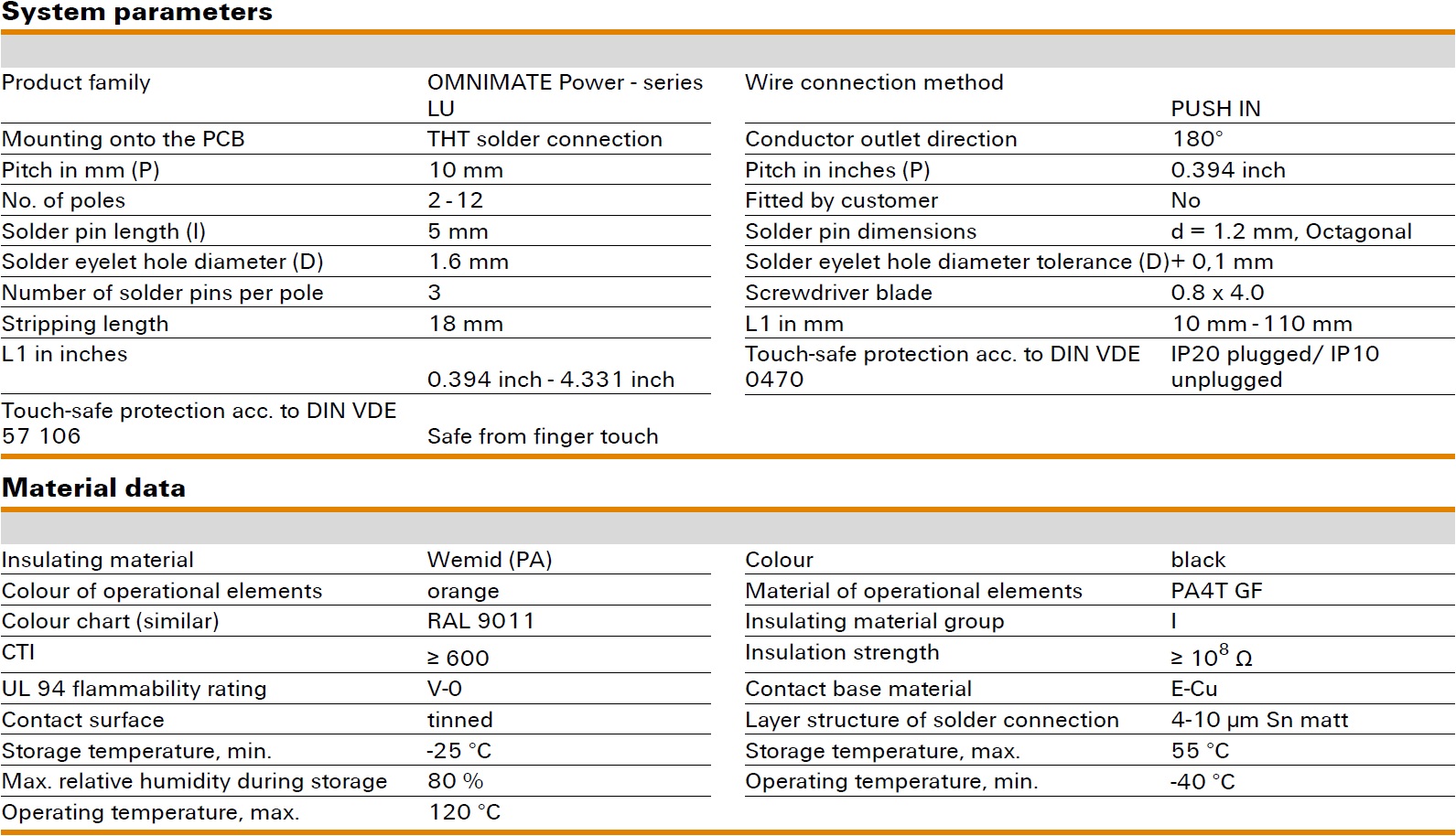

The below table gives the specifications of the Weidmüller LUF 10.00/180V PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LUFS 15.00/180V PCB terminal series from Weidmüller's Omnimate power range, offers a spring connection with direct push in technology. Designed with a conductor outlet direction of 180° and a choice from 2 up to 8 poles and a 15mm pitch. The LUFS 15.00/180V series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −40°C to +120°C .
The Sturdy, direct connection for extreme current and voltage requirements in all power electronics applications for the LUFS 15.00/180V series include:
The below table gives the specifications of the Weidmüller LUFS 15.00/180V PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The LX 15.00/90 PCB terminal series from Weidmüller's Omnimate power range, offers a clamping yoke screw connection. Designed with a conductor outlet direction of 90° and a choice from 1 up to 9 poles and a 15mm pitch. The LX 15.00/90 series from Weidmüller have a fully automatic assembly using wave soldering (THT) and can be used with or without ferrules, with an operating temperature range of −50°C to +120°C .

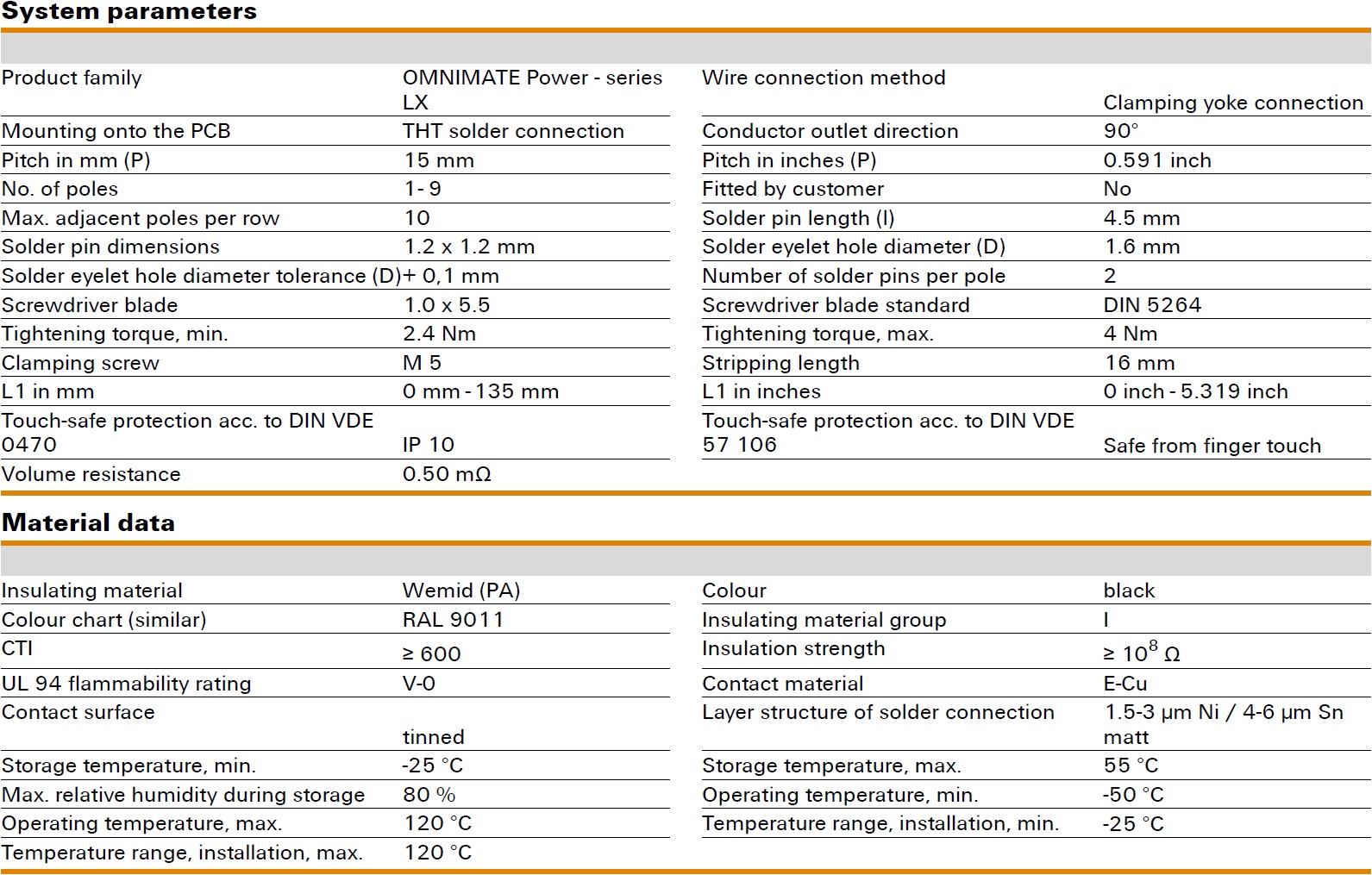

The below table gives the specifications of the Weidmüller LX 15.00/90 PCB terminal series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The SU 10.16HP/180G high current, male header PCB plug in connector series from Weidmüller's Omnimate power range, has been designed with a conductor outlet direction of 180°. They have a 10.16mm pitch and a choice from 2 up to 9 poles. The SU 10.16HP/180G series from Weidmüller with a high current rating of 78.3A (IEC) and 60A (UL approved), closed housing and are suitable for wave (THT) soldering. These PCB plug-in connectors have an operating temperature range of −50°C up to +120°C .
The below table gives the specifications of the Weidmüller SL-SMT 3.50/180G PCB connector series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The SU 10.16HP/90G high current, male header PCB plug in connector series from Weidmüller's Omnimate power range, has been designed with a conductor outlet direction of 90°. They have a 10.16mm pitch and a choice from 2 up to 9 poles. The SU 10.16HP/90G series from Weidmüller with a high current rating of 78.3A (IEC) and 60A (UL approved), closed housing and are suitable for wave (THT) soldering. These PCB plug-in connectors have an operating temperature range of −50°C up to +120°C .
The below table gives the specifications of the Weidmüller SL-SMT 3.50/90G PCB connector series:
Please see the relevant datasheet in the technical library for the exact specification
£0.00 Ex Tax: £0.00
The SV 7.62HP/180G high power, male header PCB plug in connector series from Weidmüller's Omnimate power range, has been designed with a conductor outlet direction of 180°. They have a 7.62mm pitch and a choice from 2 up to 12 poles. The SV 7.62HP/1800G series from Weidmüller with a high power rating of 57A (IEC) and 40.5A (UL approved), closed housing and are suitable for wave (THT) soldering. These PCB plug-in connectors have an operating temperature range of −50°C up to +130°C .
The below table gives the specifications of the Weidmüller SV 7.62HP/180G PCB connector series:
* Poles 2 to 9 ±0.1mm and poles 10 to 12 ±0.15mm
£0.00 Ex Tax: £0.00
The SV 7.62HP/90G high power, male header PCB plug in connector series from Weidmüller's Omnimate power range, has been designed with a conductor outlet direction of 90°. They have a 7.62mm pitch and a choice from 2 up to 12 poles. The SV 7.62HP/90G series from Weidmüller with a high power rating of 57A (IEC) and 40.5A (UL approved), closed housing and are suitable for wave (THT) soldering. These PCB plug-in connectors have an operating temperature range of −30°C up to +130°C .
The below table gives the specifications of the Weidmüller SV 7.62HP/90G PCB connector series:
Please see the relevant datasheet in the technical library for the exact specification
