Here at Rhopoint Nordic we can offer a vast selection of power resistors for various applications by a range of industry leading manufacturers including Alpha Electronics, Isabellenhuette, Caddock, RARA and Riedon. Variety of package sizes both surface-mount and through-hole, resistance values, tolerances and other variables, as well as fully customisable options are available, with the most common options held in stock at out UK office for quick delivery.
Can't find what you're looking for? Contact us, we can often offer customised solution to meet all your needs.
The FNP high power precision shunt resistor series from Alpha Electronics offers a range of very high precision current sensing shunts with a maximum power rating of 500W on a suitable heat sink at +25°C. By utilising a Ni-Cr Bulk Metal® foil resistor technology, they are able to produce resistors with low temperature coefficients. The FNP shunt resistor series has a built in Pt100 sensor for monitoring the temperature of the resistive element.
The Alpha Electronics FNP precision shunt resistor series are constructed out of the following materials:
Alpha's Ni-Cr Bulk Metal® foil resistor technology means these high power precision shunt resistors resistors are ideal in applications like:
The below table gives a summary of the specifications and options available for the Alpha FNP series:
* Keep temperature of the resistive element surface less than +125°C
** Please contact us for higher resistance values
£0.00 Ex Tax: £0.00
The PSB ultra-precision power shunt resistor series from Alpha Electronics offers 4-terminal (Kelvin) connections for current sensing and a power rating of up to 40W on a heat sink or 12W in free air (at +25°C) all with a low ohmic resistance range from 0.001Ω to 1Ω. By utilising Alpha's Bulk Metal® foil resistor technology, they are able to offer excellent temperature characteristics with low temperature coefficients down to ±5 ppm/°C between the resistance range 0.005Ω and 1Ω.
The PSB ultra-precision shunt resistor series exhibits excellent temperature characteristics thanks to Alpha's Bulk Metal® foil resistor technology, making them suitable for the most demanding precision and high power applications.
The 4-terminal connections of this high power shunt series offers accurate current sensing capabilities even in low extremity of resistance.
The PSB series has been designed for easy mounting to heat sink or water-cooled radiator as well as with threaded holes to fix cables with screws (Caution: please screw current terminals >5N·m and voltage terminals >1N·m)
Their 4-terminal design and high precision make them ideal for current sensing in precise power supply or motor driver applications.
The below table gives a summary of the specifications and options available for the Alpha PSB series:
* Thermal resistance of the heat sink 1°C/W
Available to use higher rated power with elevation of cooling effect
Please keep temperature of element surface less than +60°C
£0.00 Ex Tax: £0.00
The MP2060 Kool-Pak® clip mount power film resistors from Caddock offer a resistance range from 0.005Ω up to 1KΩ and a power range of up to 60W continuous power at +25°C case temperature for 0.02Ω and above. The MMP2060 series tolerance values available are ±1.0% (as standard) ±2.0% and ±5.0% (depending on the resistance value required). These power resistors are in a TO-220 style package designed for clip mounting and offer non-inductive design for high speed switching, snubbers and RF applications.
Custom resistance values and tolerances are also available on request

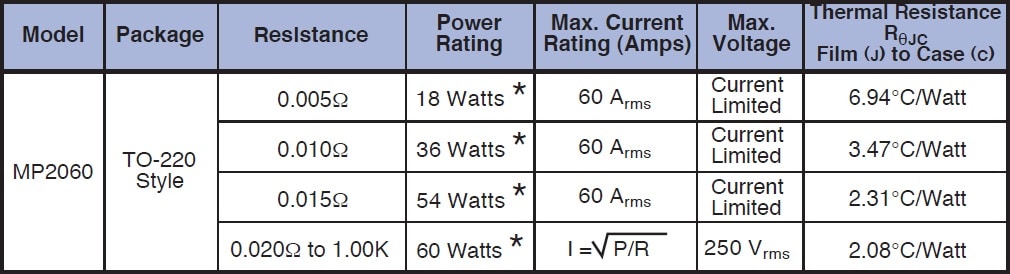

The below table gives the specifications available for the complete MP2060 resistor series:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP725 D-Pak style surface-mount power film resistors from Caddock offer a resistance range from 0.02Ω up to 1KΩ and a power rating of up to 25W at +25°C case temperature. The MP725 series tolerance values available are ±1.0%, ±5.0% and ±20.0% (depending on the resistance value required). These resistors introduce Caddock's proven Micronox® resistance film system in the widely accepted D-Pak style surface-mount power package. The non-inductive design makes this resistor ideal in high frequency communications, power switching circuits, and snubbers.
Use your thermal design experience with power semiconductors in D-Pak style power packages. This experience will help you get the most out of this unique family of surface-mount power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.

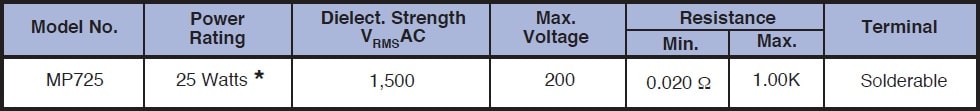

The below table gives the specifications available for the complete MP725 resistor series:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP820 Kool-Pak® power film resistors from Caddock offers a resistance range from 10Ω up to 10KΩ and a power rating of up to 20W at +25°C case temperature derated to zero at +175°C. The MP820 series tolerance is ±1.0% as standard (±0.5%, ±2.0%, ±5.0%, ±10.0% and ±20.0% are available for most resistance values). The MP820 Kool-Tab® power film resistors are constructed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate which is thermally bonded to the copper heat sink tab. The resistor body is then moulded with a high temperature moulding compound to finish the metal tab TO-220 package. The lead wire attachment and resistance element geometry are configured to provide outstanding non-inductive performance.
Use your thermal design experience with power semiconductors in TO-220 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.
The below table gives the specifications available for the complete MP820 resistor series:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP821 Kool-Pak® power film resistors from Caddock offers a resistance range from 0.02Ω up to 9.99Ω and a power rating of up to 20W at +25°C case temperature derated to zero at +175°C. The MP821 series tolerance is ±1.0% as standard (±0.5%, ±2.0%, ±5.0%, ±10.0% and ±20.0% are available for most resistance values). The MP821 Kool-Tab® power film resistors are constructed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate which is thermally bonded to the copper heat sink tab. The resistor body is then moulded with a high temperature moulding compound to finish the metal tab TO-220 package. The lead wire attachment and resistance element geometry are configured to provide outstanding non-inductive performance.
Use your thermal design experience with power semiconductors in TO-220 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.

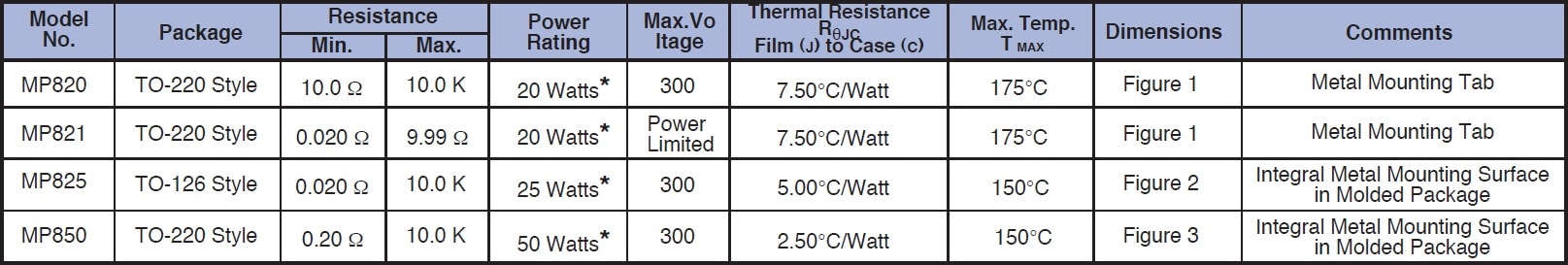

The below table gives the specifications available for the complete MP800 resistor series including the MP821:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP825 Kool-Pak® power film resistors from Caddock include an integral metal mounting surface for highly efficient thermal transfer. The resistance range is from 0.02Ω up to 10KΩ with a power rating of up to 25W at +25°C case temperature derated to zero at +150°C. The MP825 series tolerance is ±1.0% as standard (±0.5%, ±2.0%, ±5.0%, ±10.0% and ±20.0% are available for most resistance values). Caddock MP825 Kool-Pak® Power Film Resistors are constructed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate. The ceramic substrate is bonded to a copper heat sink which becomes the metal mounting surface. This assembly is moulded with the copper heat sink flush with the back surface of the part. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.
Use your thermal design experience with power semiconductors in TO-126 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.
The below table gives the specifications available for the complete MP800 resistor series including the MP825:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP850 Kool-Pak® power film resistors from Caddock include an integral metal mounting surface for highly efficient thermal transfer. The resistance range is from 0.2Ω up to 10KΩ with a power rating of up to 50W at +25°C case temperature derated to zero at +150°C. The MP850 series tolerance is ±1.0% as standard (±0.5%, ±2.0%, ±5.0%, ±10.0% and ±20.0% are available for most resistance values). Caddock MP850 Kool-Pak® power film resistors are constructed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate. The ceramic substrate is bonded to a copper heat sink which becomes the metal mounting surface. This assembly is moulded with the copper heat sink flush with the back surface of the part. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.
Use your thermal design experience with power semiconductors in TO-126 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.
The below table gives the specifications available for the complete MP800 resistor series including the MP850:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP9100 Kool-Pak® power film resistors from Caddock are a low cost, heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface. The resistance range is from 0.05Ω up to 100Ω with a power rating of up to 100W at +25°C case temperature derated to zero at +175°C. The MP9100 series tolerance is ±1.0% as standard (±5.0% and ±20.0% are available for most resistance values). The MP9100 series Kool-Pak® power film resistors are constructed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.
Use your thermal design experience with power semiconductors in TO-247 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.
The below table gives the specifications available for the complete MP9000 resistor series including the MP9100:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP915 Kool-Pak® power film resistors from Caddock are a low cost, heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface. The resistance range is from 0.02Ω up to 1KΩ with a power rating of up to 15W at +25°C case temperature derated to zero at +150°C. The MP915 series tolerance options available are ±1.0% ( standard), ±5.0% and ±20.0% depending on the resistance values required. The MP915 series Kool-Pak® power film resistors are constructed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.
Use your thermal design experience with power semiconductors in TO-126 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.

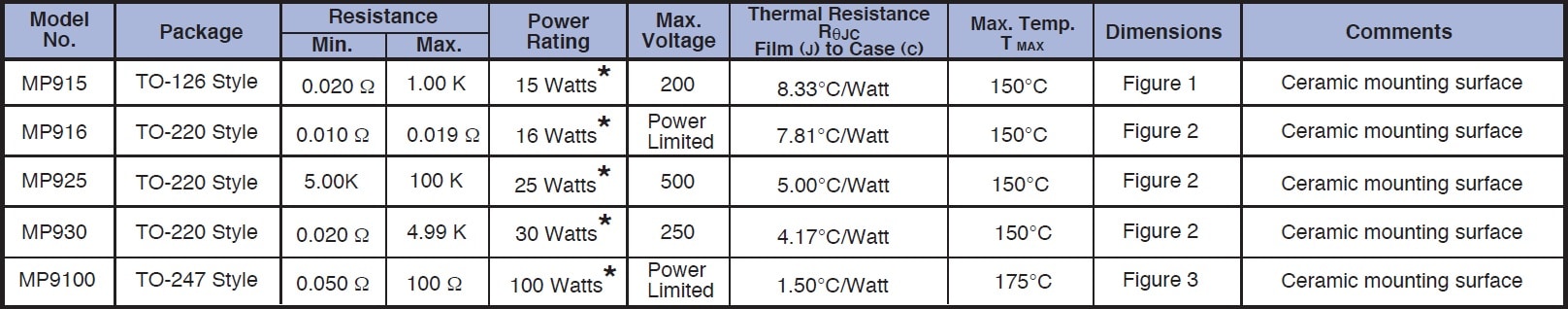

The below table gives the specifications available for the complete MP900 resistor series including the MP915:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP916 Kool-Pak® power film resistors from Caddock are a low cost, heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface. The standard resistance values available are 0.01Ω and 0.015Ω with a power rating of up to 16W at +25°C case temperature derated to zero at +150°C. The MP916 series tolerance options available are ±5.0% ( standard) and ±20.0%. The MP915 series Kool-Pak® power film resistors are constructed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.
Use your thermal design experience with power semiconductors in TO-220 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.
The below table gives the specifications available for the complete MP900 resistor series including the MP916:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP925 Kool-Pak® power film resistors from Caddock are a low cost, heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface. The resistance range is from 5KΩ up to 100KΩ with a power rating of up to 25W at +25°C case temperature derated to zero at +150°C. The MP915 series tolerance options available are ±1.0% (standard), ±5.0% and ±20.0% are also available depending on the resistance values required. The MP925 series Kool-Pak® power film resistors are constructed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.
Use your thermal design experience with power semiconductors in TO-220 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.
The below table gives the specifications available for the complete MP900 resistor series including the MP925:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MP930 Kool-Pak® power film resistors from Caddock are a low cost, heat sink mountable design featuring an exposed ceramic heat dissipating mounting surface. The resistance range is from 0.02Ω up to 4.99kΩ with a power rating of up to 30W at +25°C case temperature derated to zero at +150°C. The MP930 series tolerance options available are ±5.0% from 0.02Ω up to 0.04Ω, ±1.0% from 0.05Ω and above, (±5.0% and ±20.0% are available for most resistance values). The MP930 series Kool-Pak® power film resistors are constructed with Caddock's Micronox® resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance.
Use your thermal design experience with power semiconductors in TO-220 style power packages to help you get the most out of this unique family of power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.
The below table gives the specifications available for the complete MP900 resistor series including the MP930:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MPM20 Kool-Pak® power film resistors from Caddock are pure tin free design for high performance industrial and military applications in TO-220 style power package with metal mounting tab. The resistance range is from 0.02Ω up to 10kΩ with a power rating of up to 20W at +25°C case temperature. The MPM20 series tolerance is ±1.0% (±0.5% is available for most resistance values). MPM20 series uses Caddock’s proven Micronox® resistance film system to provide a compact heat sink mountable resistor. The non-inductive design makes this resistor ideal in high frequency communications, power switching circuits and snubbers.
Use your thermal design experience with power semiconductors in TO-220 style power packages. This experience will help you get the most out of this unique family of surface-mount power resistors. The thermal design issues are the same where power handling capability is based on the case temperature which is maintained in your design.

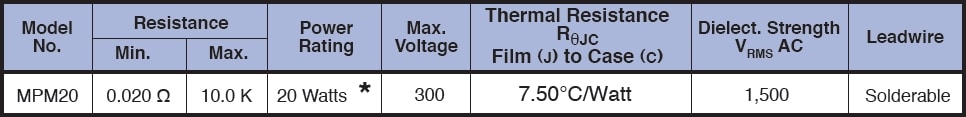

The below table gives the specifications available for the complete MPM20 resistor:
* Please see the datasheet for the derating curve.
£0.00 Ex Tax: £0.00
The MS power film resistor family from Caddock are axial-lead resistors with a wide resistance range from 20Ω to 30MΩ and a maximum operating temperature of +275°C. These resistors have a power rating of up to 22W at +25°C and maximum voltage of 6000V. Caddock MS power film high voltage resistors are cost effective high voltage resistors. Caddock MS power film high voltage resistors performance begins with Caddock's Micronox® resistance films which are fired directly onto a ceramic core at temperatures above 1400°F (760°C). These resistance films have demonstrated outstanding stability when exposed to a high ambient temperature, thermal shock and high power densities.
Most models are manufactured with Caddock's non-inductive serpentine resistive pattern that provides a truly non-inductive resistor that is about as inductive as a straight piece of wire the length of the resistor body. Caddock MS series lead material is nickel clad copper with thin gold plate, solderable. For welding applications, optional pure nickel leads are available on Models MS126, MS150, MS151, MS175, MS176, MS210.
The below table gives the specifications available for the complete MS resistor series:
Models with low inductance construction are in shaded areas
Models with Caddock's non-inductance resistance pattern are in non-shaded areas
* limited by power rating
£0.00 Ex Tax: £0.00
