Browse wide range of High Voltage resistors from leading industry manufacturers at Rhopoint Nordic. Available as through-hole and surface mount options, and with a wide range of votage ratings, power ratings, tolerances and other variables, we can find the right solution for your project, however big or small.
Can't find what you're looking for? Contact us, we can often offer customised solution to meet all your needs.
The MG precision high voltage axial resistor series from Caddock offers a voltage rating of up to 30kV (standard series) or 48kV (-15 variant), power rating of up 15W and a resistance range from 200Ω up to 2GΩ (standard series) or 10GΩ (extended range), all in a cylindrical axial leaded through-hole package. Caddock's Micronox® resistance films are the source of their outstanding combination of performance features. The MG series offers tolerances from ±1.0% down to ±0.1% across the standard series or ±1.0% for both -15 and extended ranges.
The exceptional performance of the Caddock MG series has been proven through many years of use in equipment that demands the highest reliability and stability, including TWT amplifiers, X-ray systems, geophysical instruments and medical electronics.
Most models of the MG series are manufactured with Caddock's non-inductive design which uses a serpentine resistive pattern that provides for neighbouring lines to carry current in opposite directions, thereby achieving maximum cancellation of flux fields over the entire length of the resistor. The efficient non-inductive construction is accomplished without derating of any performance advantages.
Additional options to the standard resistor range includes extended resistance values and the -15 option for increased maximum operating voltages.

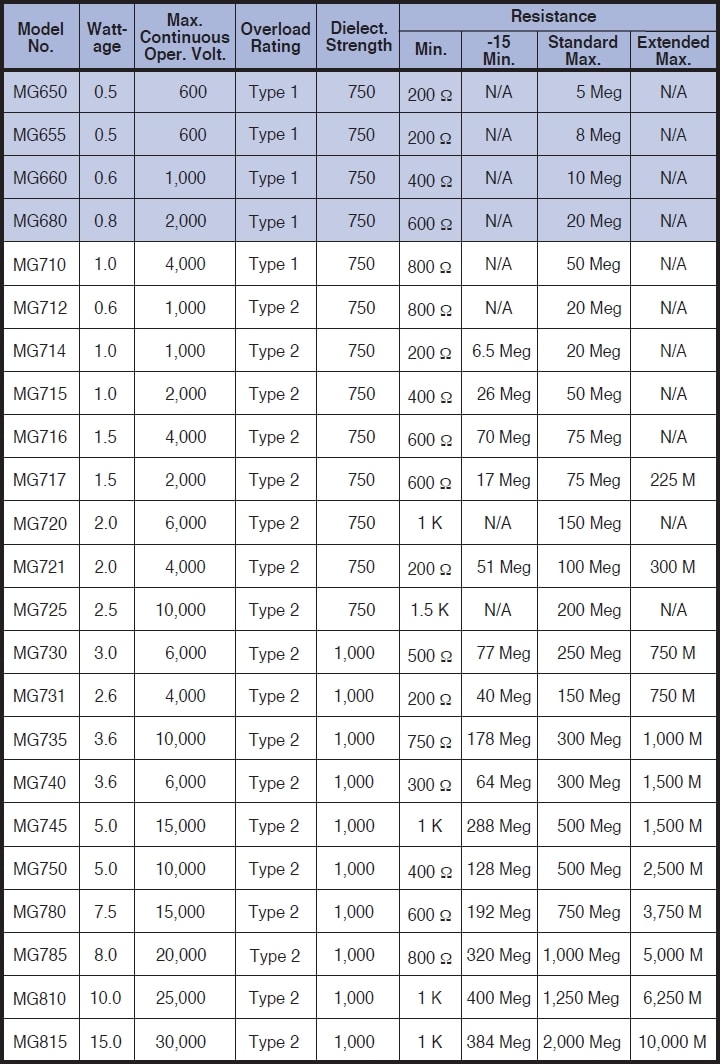

The below table gives the specifications available for the complete MG resistor series:
Models with low inductance construction are in shaded areas
Models with Caddock's non-inductance resistance pattern are in non-shaded areas
£0.00 Ex Tax: £0.00
The ML high temperature precision axial leaded resistor series from Caddock offers a resistance range from 50Ω up to 5MΩ, a power rating of up to 0.6W (ML181 model) and a voltage rating of up to 600V (ML181 model). The ML series has a tolerance of ±1.0% as standard, with options down to ±0.1% on special order, and also a TCR of ±50 ppm/°C (between -15°C and +105°C). These resistors are produced with Caddock's proven Micronox® resistance films.
Some models of the ML series are manufactured with Caddock's non-inductive design that provides for neighbouring lines to carry current in opposite directions. This efficient non-inductive construction is accomplished without derating of any performance advantages.
ML high temperature high voltage precision resistors have a proven performance history in industrial and military applications.

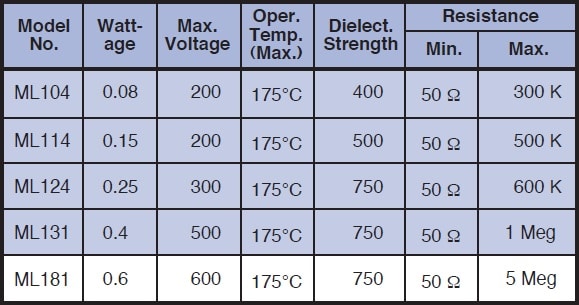

The below table gives the specifications available for the complete ML resistor series:
Models with low inductance construction are in shaded areas
Models with Caddock's non-inductance resistance pattern are in non-shaded areas
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MM high temperature precision axial leaded resistor series from Caddock offers a resistance range from 30Ω up to 10MΩ, a power rating of up to 1W (MM215 model) and a voltage rating of up to 800V (MM215 model). The MM series has a tolerance of ±1.0% as standard, with options down to ±0.1% on special order, and also a TCR of ±50 ppm/°C (between -15°C and +105°C). These resistors are produced with Caddock's proven Micronox® resistance films.
Some models of the MM series are manufactured with Caddock's non-inductive design that provides for neighbouring lines to carry current in opposite directions. This efficient non-inductive construction is accomplished without derating of any performance advantages.
MM high temperature high voltage precision resistors have a proven performance history in industrial and military applications.

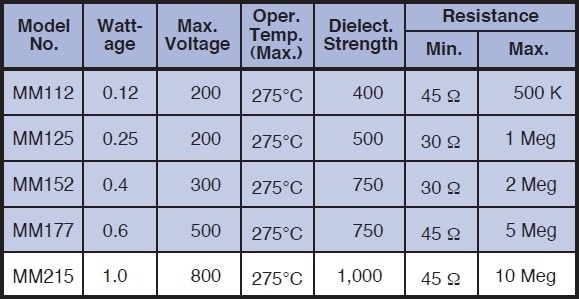

The below table gives the specifications available for the complete MM resistor series:
Models with low inductance construction are in shaded areas
Models with Caddock's non-inductance resistance pattern are in non-shaded areas
The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.
£0.00 Ex Tax: £0.00
The MX500 series from Caddock are cost effective high voltage resistors for industrial and general purpose applications, with a resistance range from 1MΩ to 1000MΩ and a maximum operating temperature of +175°C. These parts are the RoHS equivalent to the Caddock MX400 series, they have a maximum power rating of up to 10W (MX585 model) and tolerance of ±1.0% standard. The MX500 resistors combine the proven performance of Caddock's Micronox® resistance system with new cost-efficient design elements and the non-inductive serpentine pattern coated with the high-quality, high-temperature black silicone conformal coating material. These resistors are intended for the design of high voltage systems where the system is not exposed to full military or space grade operating conditions.
For full military or space grade operating conditions, we recommend Caddock's TG Low TC precision high voltage resistors or MG precision high voltage resistors.

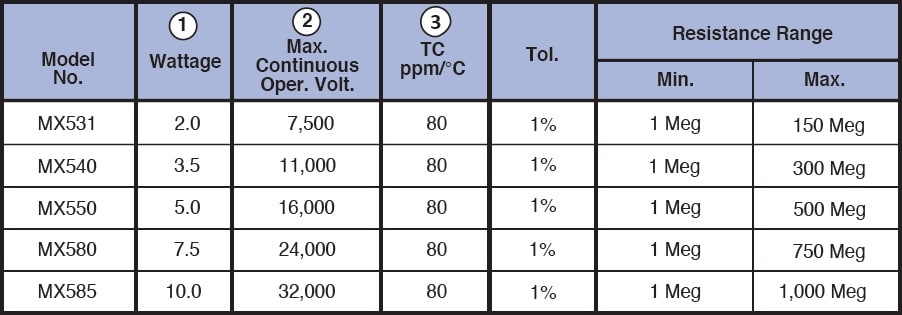

The below table gives the specifications available for the complete MX500 resistor series:
1. Power rating (wattage): maximum continuos power in free-air up to +70°C
2. Operating voltage (rms AC or DC): maximum continuos operating voltage applied in free-air up to +70°C, not to exceed rated power
3. Temperature coefficient: 80ppm/°C ref. to +25°C, ΔR taken at 0°C and +70°C
£0.00 Ex Tax: £0.00
The TG series from Caddock are low TCR precision high voltage resistors, with a resistance range between 1MΩ and 1,000MΩ. They have a tolerance of ±1.0% (down to ±0.1% on special order) and the low TCR value is ±25 ppm/°C (between -55°C and +125°C). The TG series utilize Caddock's proven Tetrinox® resistance system to achieve the unique combination of low temperature coefficient (TCR) which minimizes the self-drift due to power dissipation warm-up and high stability performance at high operating voltages.
The TG series from Caddock is designed to meet the demanding stability requirements of:

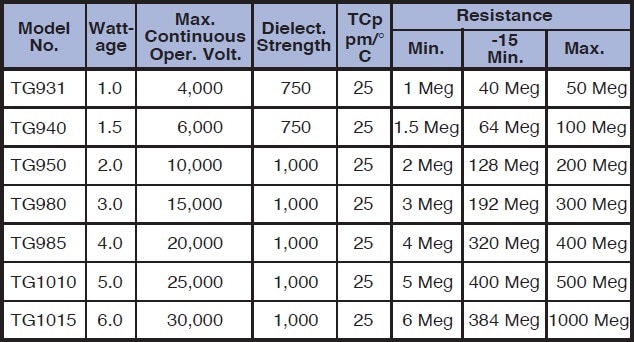

The below table gives the specifications available for the complete TG resistor series:
£0.00 Ex Tax: £0.00
The USF240 series from Caddock are ultra-stable low temperature coefficient (TCR) film resistors, with a resistance range of between 50Ω and 10MΩ, low TCR of ±2 ppm/°C and with a tolerance of ±0.01% or ±0.1%. The USF240 are constructed with two selected USF300 series resistors bonded back to back for parallel connection on the PCB and using a ceramic package provides cool operation. Utilising Caddock proprietary resistance film systems, they provide the lowest TCR and the highest voltage ratings available in the industry.
The USF Ultra-Stable Resistors are offered in standard resistance values that are most commonly used in precision analog design and can be used in

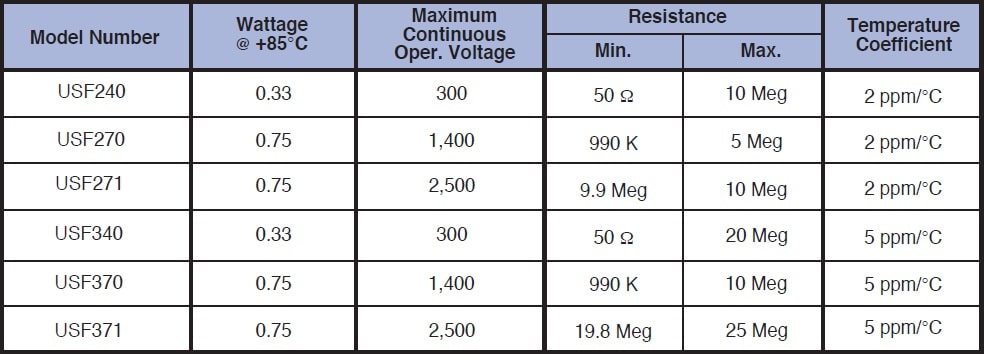

The below table gives the specifications available for the complete USF series including the USF240 model:
£0.00 Ex Tax: £0.00
The USF270 series from Caddock are ultra-stable low temperature coefficient (TCR) film resistors, with a resistance range of between 990KΩ and 5MΩ, low TCR of ±2 ppm/°C and with a tolerance of ±0.01% or ±0.1%. The USF270 are constructed with two selected USF300 series resistors bonded back to back for parallel connection on the PCB and using a ceramic package provides cool operation. Utilising Caddock proprietary resistance film systems, they provide the lowest TCR and the highest voltage ratings available in the industry.
The USF Ultra-Stable Resistors are offered in standard resistance values that are most commonly used in precision analog design and can be used in
The below table gives the specifications available for the complete USF series including the USF270 model:
£0.00 Ex Tax: £0.00
The USF271 series from Caddock are ultra-stable low temperature coefficient (TCR) film resistors, with a resistance range of between 9.9MΩ and 10MΩ, low TCR of ±2 ppm/°C and with a tolerance of ±0.01% or ±0.1%. The USF271 are constructed with two selected USF300 series resistors bonded back to back for parallel connection on the PCB and using a ceramic package provides cool operation. Utilising Caddock proprietary resistance film systems, they provide the lowest TCR and the highest voltage ratings available in the industry.
The USF Ultra-Stable Resistors are offered in standard resistance values that are most commonly used in precision analog design and can be used in
The below table gives the specifications available for the complete USF series including the USF271 model:
£0.00 Ex Tax: £0.00
The USF340 series from Caddock are ultra-stable low temperature coefficient (TCR) film resistors, with a resistance range of between 50Ω and 20MΩ, low TCR of ±5 ppm/°C and with a tolerance of ±0.01% or ±0.1%. The USF340 are constructed with an aluminum oxide ceramic sandwich which provides great thermal conductivity which very effectively minimizes the power coefficient drift. Utilising Caddock proprietary resistance film systems, they provide the lowest TCR and the highest voltage ratings available in the industry.
The USF Ultra-Stable Resistors are offered in standard resistance values that are most commonly used in precision analog design and can be used in
The below table gives the specifications available for the complete USF series including the USF340 model:
£0.00 Ex Tax: £0.00
The USF370 series from Caddock are ultra-stable low temperature coefficient (TCR) film resistors, with a resistance range of between 990KΩ and 10MΩ, low TCR of ±5 ppm/°C and with a tolerance of ±0.01% or ±0.1%. The USF370 are constructed with an aluminum oxide ceramic sandwich which provides great thermal conductivity which very effectively minimizes the power coefficient drift. Utilising Caddock proprietary resistance film systems, they provide the lowest TCR and the highest voltage ratings available in the industry.
The USF Ultra-Stable Resistors are offered in standard resistance values that are most commonly used in precision analog design and can be used in
The below table gives the specifications available for the complete USF series including the USF370 model:
£0.00 Ex Tax: £0.00
The USF371 series from Caddock are ultra-stable low temperature coefficient (TCR) film resistors, with a resistance range of between 19.8MΩ and 25MΩ, low TCR of ±5 ppm/°C and with a tolerance of ±0.01% or ±0.1%. The USF371 are constructed with an aluminum oxide ceramic sandwich which provides great thermal conductivity which very effectively minimizes the power coefficient drift. Utilising Caddock proprietary resistance film systems, they provide the lowest TCR and the highest voltage ratings available in the industry.
The USF Ultra-Stable Resistors are offered in standard resistance values that are most commonly used in precision analog design and can be used in
The below table gives the specifications available for the complete USF series including the USF371 model:
£0.00 Ex Tax: £0.00
The USFS series from Caddock are high voltage, ultra stable, low TCR selected resistor sets. The resistance values available for the complete sets are 30MΩ, 50MΩ and 100MΩ all with a TCR of 2 ppm/°C and a tolerance of ±0.10% for each set. The USFS resistor sets are designed for use in high voltage systems that require the very best temperature and long term stability. These are manufactured with Caddock's Tetrinox® resistance film system, the individual resistors that form these sets are individually characterised using automated data acquisition systems and then selected to form a set resistance.
Multiple USFS selected resistor sets can be used in series to form a string of resistors that achieve a higher total resistance and a higher voltage rating with 2 ppm/°C overall temperature coefficient.

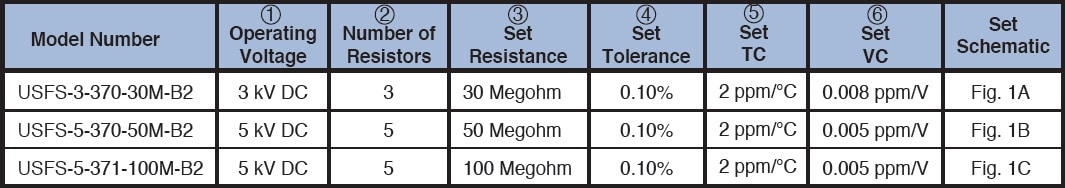

The below table gives the specifications available for the complete USFS series:
* Please see the datasheet for the specification notes.
£0.00 Ex Tax: £0.00
The USG1105 series from Caddock are ultra-stable precision high voltage resistors. The resistance values available are 50MΩ and 75MΩ with a TCR of 10 ppm/°C or 20 ppm/°C and a tolerance of ±0.10% or ±0.20% depending on the resistance value required. The USG1105 series from Caddock uses the Tetrinox® resistance film system and was developed to optimise low temperature coefficient performance and long term stability performance.
The low TCR of the Type USG1105 resistors minimizes temperature related drift due to temperature gradients that may exist due to the placement of the resistor components in the high voltage assembly

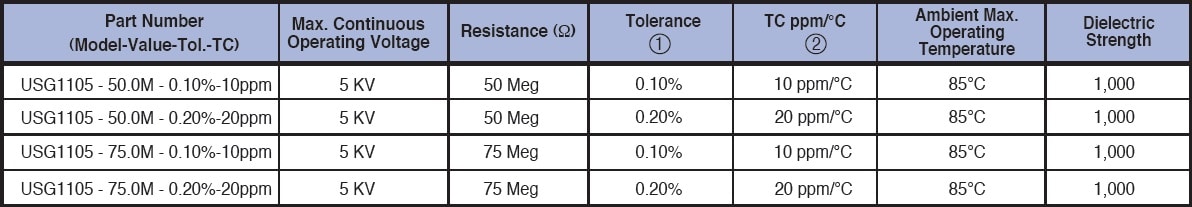

The below table gives the specifications available for the USG1105 series:
* Please see the datasheet for the specification notes.
£0.00 Ex Tax: £0.00
The USG1110 series from Caddock are ultra-stable precision high voltage resistors. The resistance values available are 100MΩ and 150MΩ with a TCR of 10 ppm/°C or 20 ppm/°C and a tolerance of ±0.10% or ±0.20% depending on the resistance value required. The USG1110 series from Caddock uses the Tetrinox® resistance film system and was developed to optimize low temperature coefficient performance and long term stability performance.
The low TCR of the Type USG1110 resistors minimizes temperature related drift due to temperature gradients that may exist due to the placement of the resistor components in the high voltage assembly

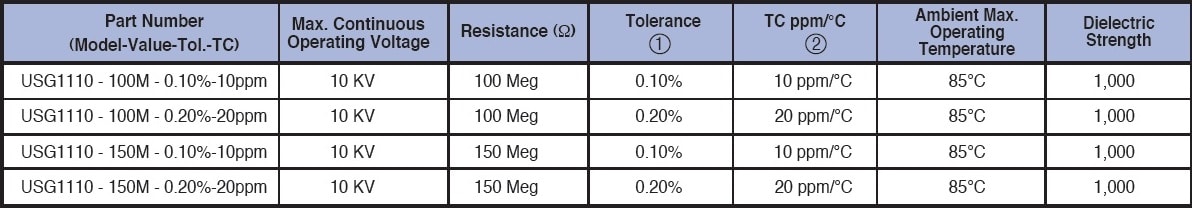

The below table gives the specifications available for the USG1110 series:
* Please see the datasheet for the specification notes.
£0.00 Ex Tax: £0.00
The USG1115 series from Caddock are ultra-stable precision high voltage resistors. The resistance values available are 150MΩ and 200MΩ with a TCR of 10 ppm/°C or 20 ppm/°C and a tolerance of ±0.10% or ±0.20% depending on the resistance value required. The USG1115 series from Caddock uses the Tetrinox® resistance film system and was developed to optimize low temperature coefficient performance and long term stability performance.
The low TCR of the Type USG1115 resistors minimizes temperature related drift due to temperature gradients that may exist due to the placement of the resistor components in the high voltage assembly

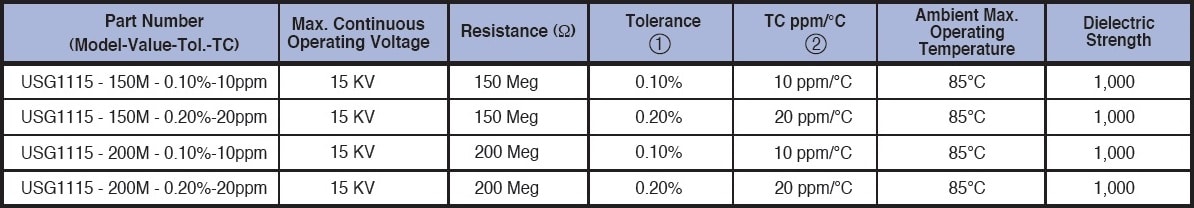

The below table gives the specifications available for the USG1115 series:
* Please see the datasheet for the specification notes.
