Voltage regulators are used for keeping the voltage at a constant level within electronic equipment. Here at Rhopoint Nordic we offer NVE’s high input voltage (low current) regulators handling input voltage of up to 36V.
Need more information? Contact us, our technical sales team c.an discuss your project or a product and give technical advice or find further information whenever needed.
The NVE DC001-10E series voltage regulator ICs from NVE are designed for use in high voltage, low current applications, providing a wide input voltage range from 4.5V to 36V, with a typical regulated output of 3.3V. The DC series from NVE protect the sensitive electronic components downstream, while providing a stable regulated supply voltage. Rated for high temperature operation up to +170°C. The DC001 voltage regulator also meets 42V automotive standards and the low-profile TDFN6 package features an exposed die attach pad for direct heat sinking to the circuit board.
The NVE DC001-10E high voltage, low power voltage regulators are ideal for the following applications:

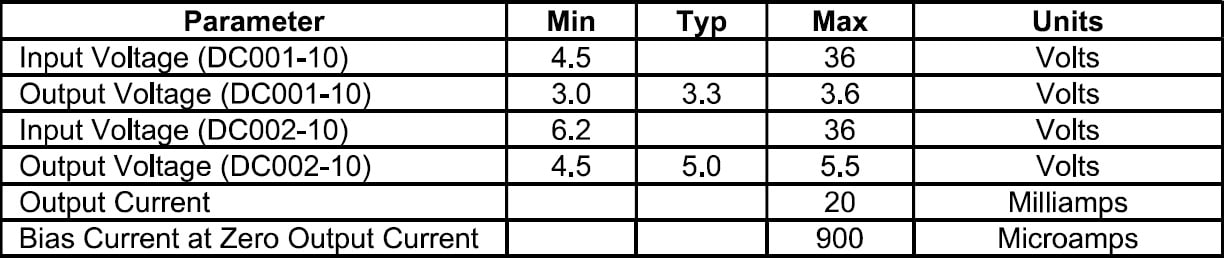

The below table gives the full specifications of the NVE DC series including the DC001-10E
£0.00 Ex Tax: £0.00
The NVE DC002-10E series voltage regulator ICs from NVE are designed for use in high voltage, low current applications, providing a wide input voltage range from 6.2V to 36V, with a typical regulated output of 5V. The DC series from NVE protect the sensitive electronic components downstream, while providing a stable regulated supply voltage. Rated for high temperature operation up to +170°C. The DC002 voltage regulator also meets 42V automotive standards and the low-profile TDFN6 package features an exposed die attach pad for direct heat sinking to the circuit board.
The NVE DC002-10E high voltage, low power voltage regulators are ideal for the following applications:
The below table gives the full specifications of the NVE DC series including the DC002-10E
£0.00 Ex Tax: £0.00
